Machining
Prototype to production CNC machining.
New Tech Metals provides prototype and advanced parts machining services that complement our fabrication component capabilities. Our in-house expertise allows us to maintain tight quality control while minimizing cost and lead time.
With a full range of CNC milling and turning equipment, we can machine parts of varying sizes and complexities, supporting prototype, low-volume, and production quantities to meet customer requirements.
Capabilities
Milling
- (2) Haas CNC VF-4 Mill
- HAAS HRT310 4th Axis
- Haas EC-500 Horizontal w/ Pallet Changer
- ENCO 100-529 Bridgeport Vertical Milling Machine
Drilling & Tapping
- (3) FlexArm RNR-20 Pneumatic Tapping Arm
- Baileigh Variable Speed Drill Press DP-1200VS
Turning
- Haas ST30 40HP Lathe
- Haas ST25 Lathe
Machining in Action.
From drawing to finished part.
- 01
Drawing Review & CAM Programming
Engineering drawings reviewed for GD&T callouts, datum structure, and critical features. Native CAD (STEP, IGES) preferred over PDF for accuracy. Tool paths programmed for the right machine, VMC, horizontal, or lathe, based on part geometry and volume.
- 02
Material & Stock Procurement
Bar stock, plate, or near-net blanks sourced with Mill Test Reports. Heat lot identification marked at receiving and carried through to finished part. DFARS specialty metals flowdown verified when applicable to the contract.
- 03
Setup & Fixturing
Workholding selected to meet rigidity, repeatability, and access requirements for the called-out features. 4th-axis fixturing used on the VF-4 mills for multi-side work; pallet changer fixturing staged on the EC-500 horizontal for production runs.
- 04

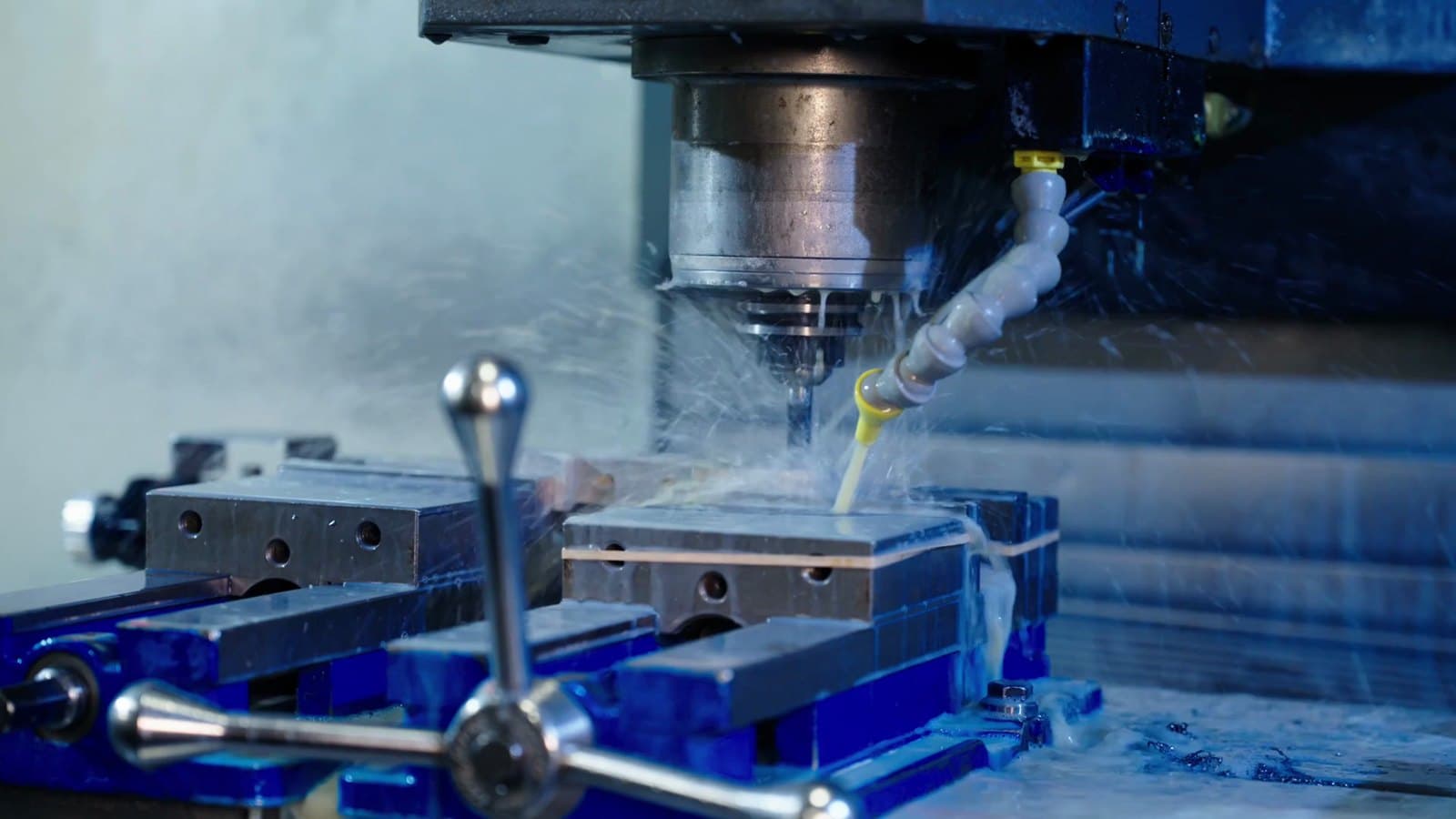

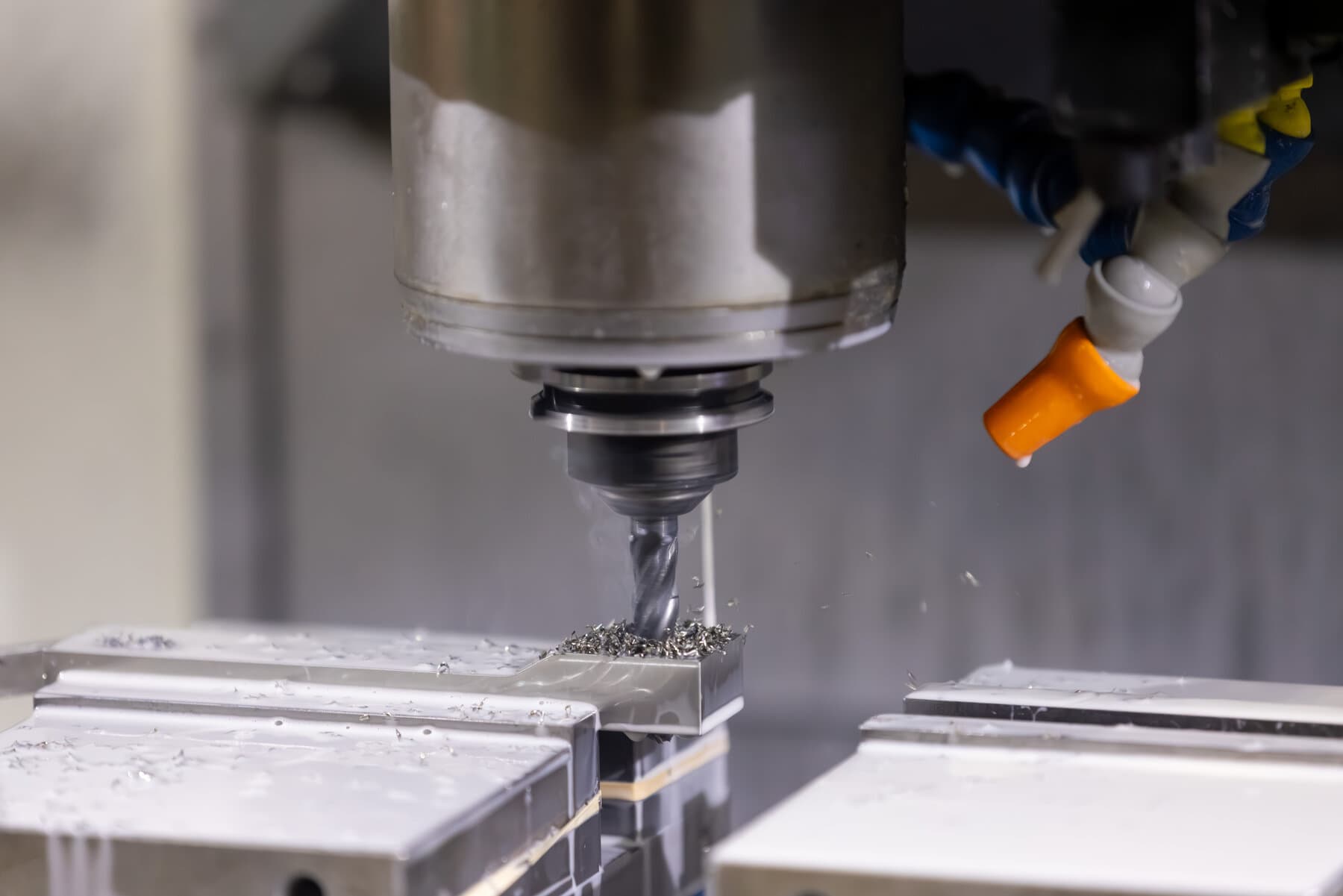

CNC Machining & In-Process Inspection
Production runs against the validated program. Operators verify critical features in-process per the inspection plan, first-piece, periodic, and at tool changes. Out-of-tolerance trends are caught before a full lot is cut.
- 05
Final QC & Delivery
Final dimensional inspection per the drawing. First Article Inspection completed when required by contract. Material certifications and Certificate of Conformance compiled. Parts deburred, marked, and packaged before shipment.
What we machine, and on what.

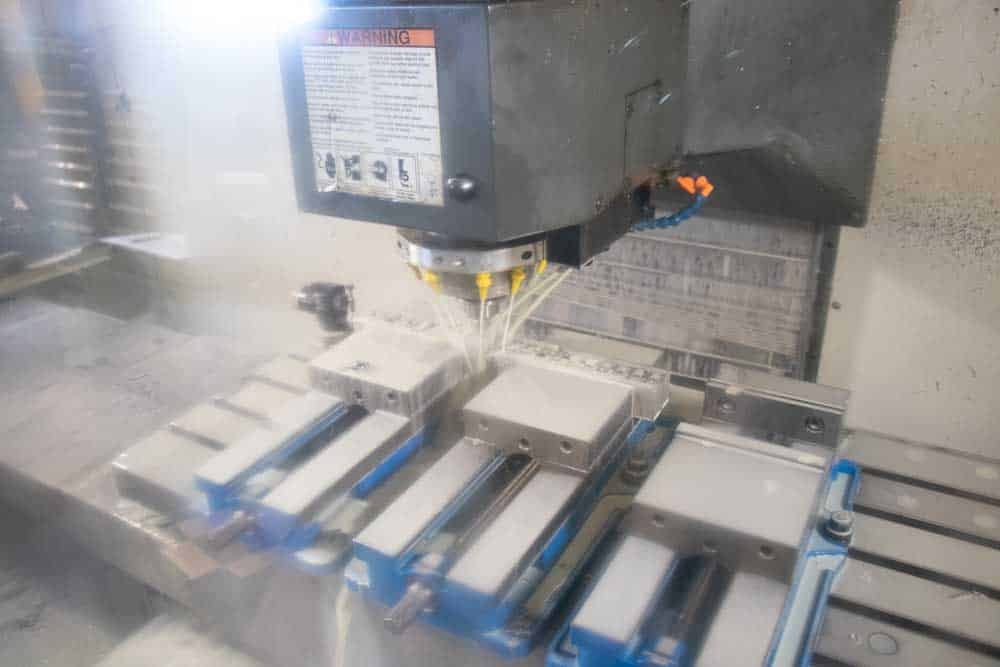

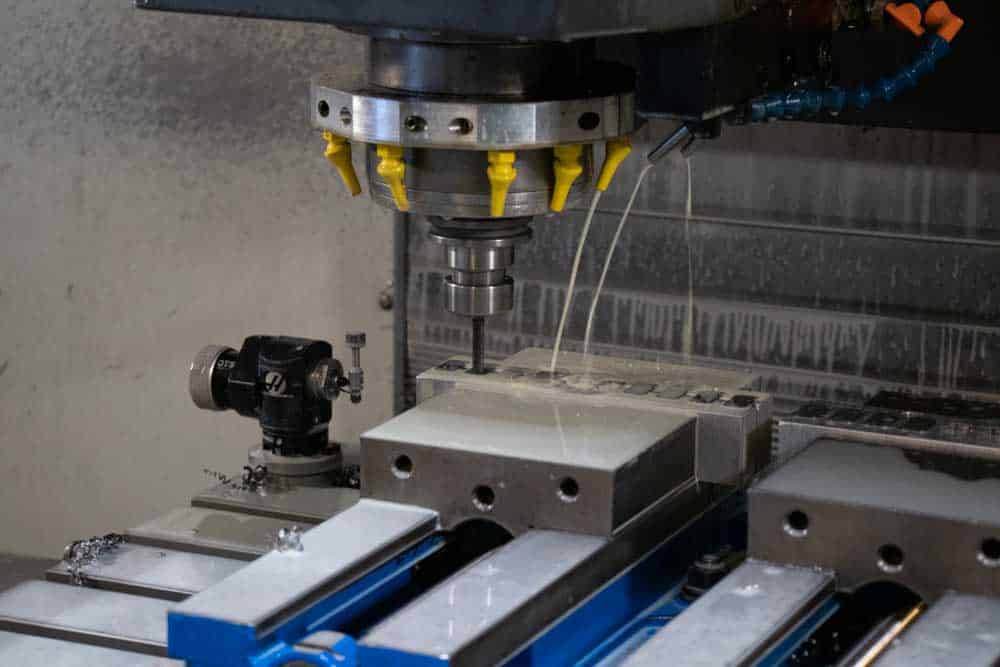

- Milling. (2) Haas VF-4 vertical machining centers with HRT310 4th axis for multi-side work.

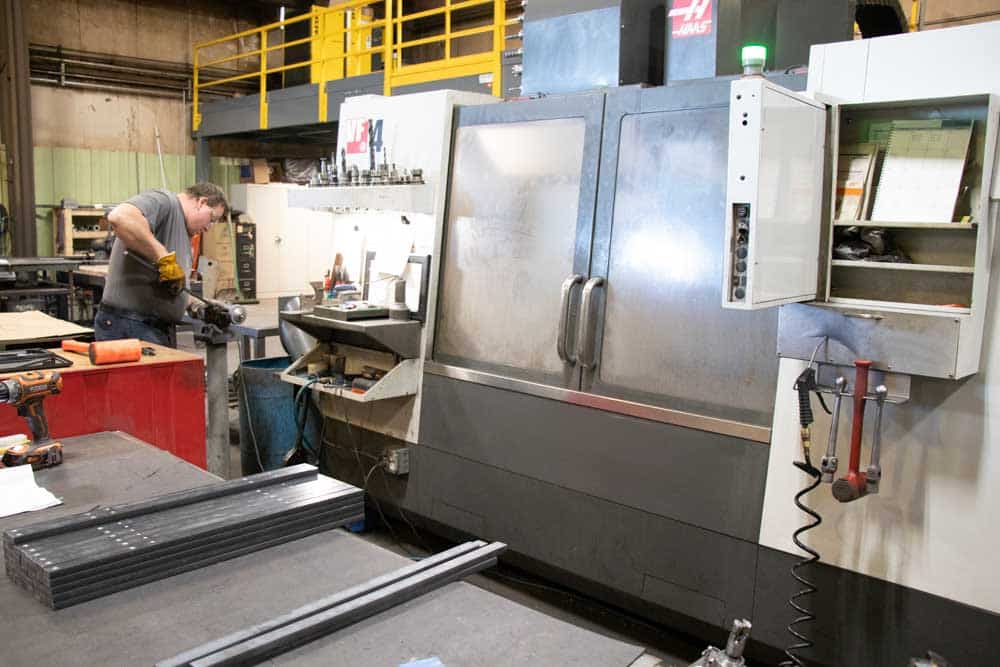

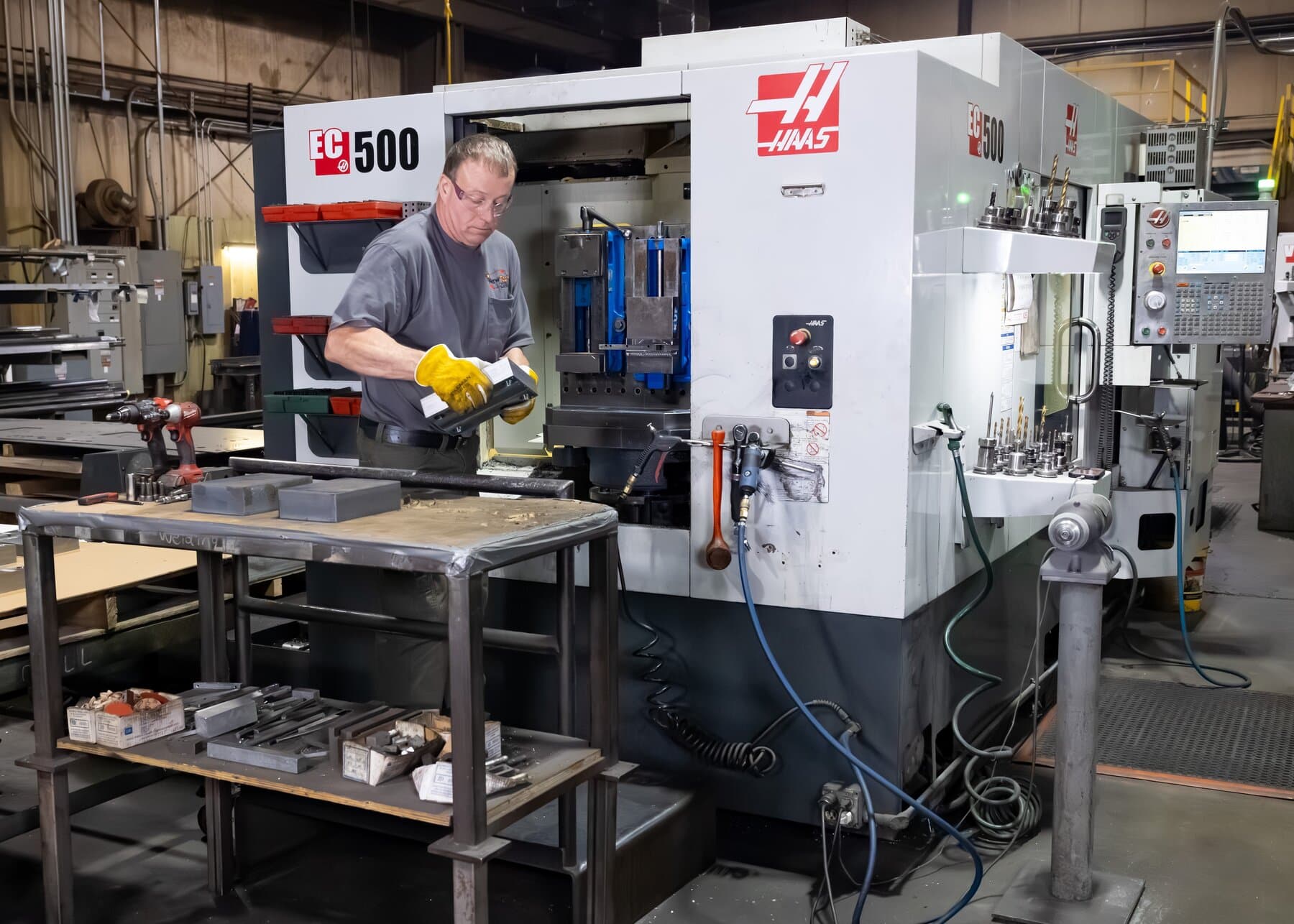

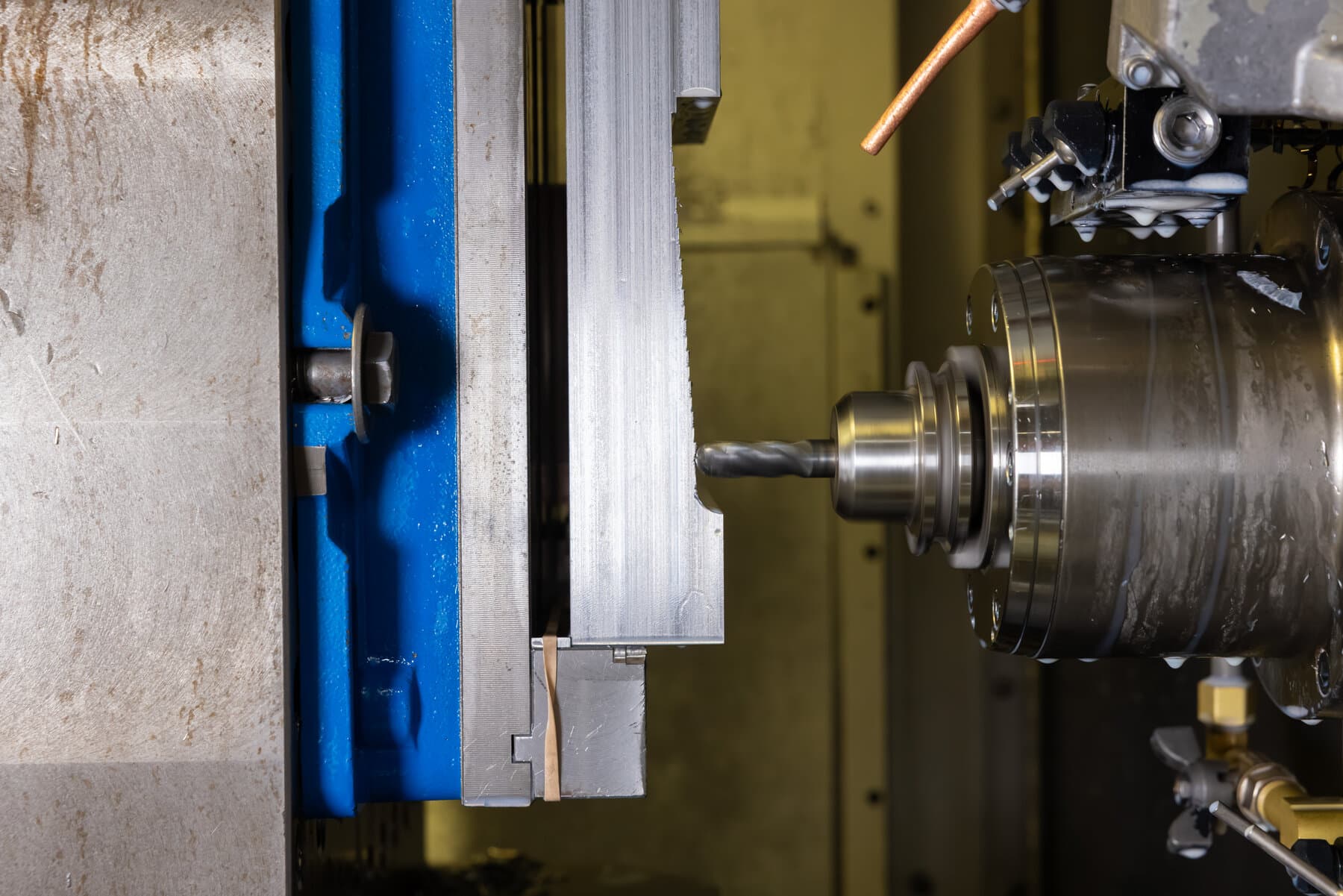

- Milling. Haas EC-500 horizontal machining center with pallet changer for production volume.

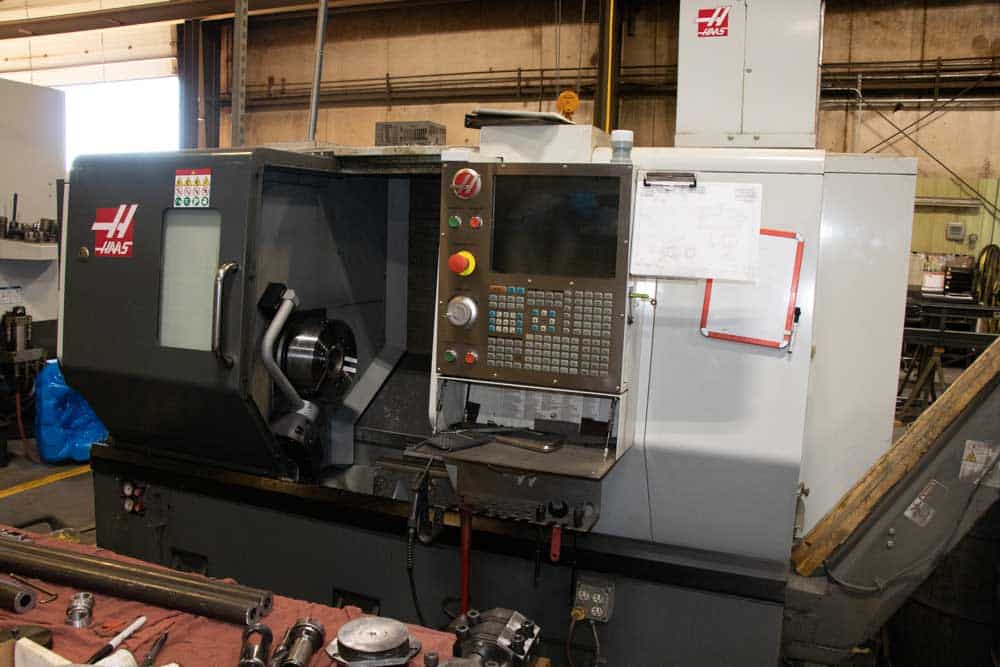

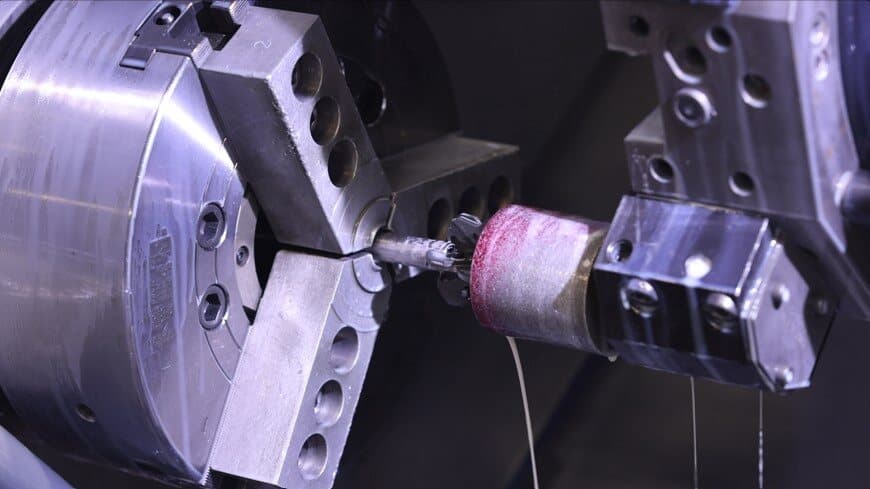

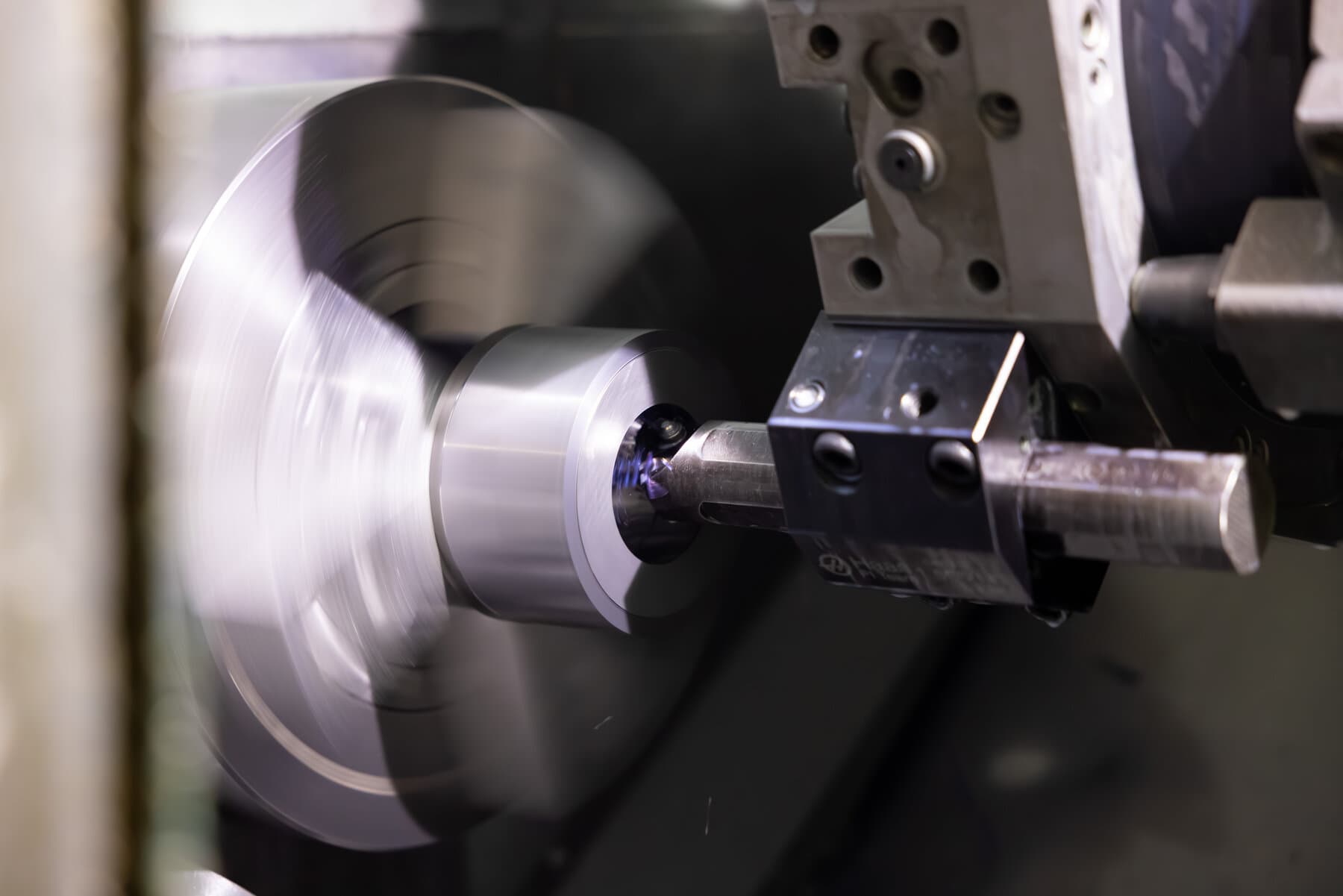

- Turning: Haas ST30 40HP and Haas ST25 CNC lathes for shaft, bushing, and rotational parts. Bar puller and part off for production volume.

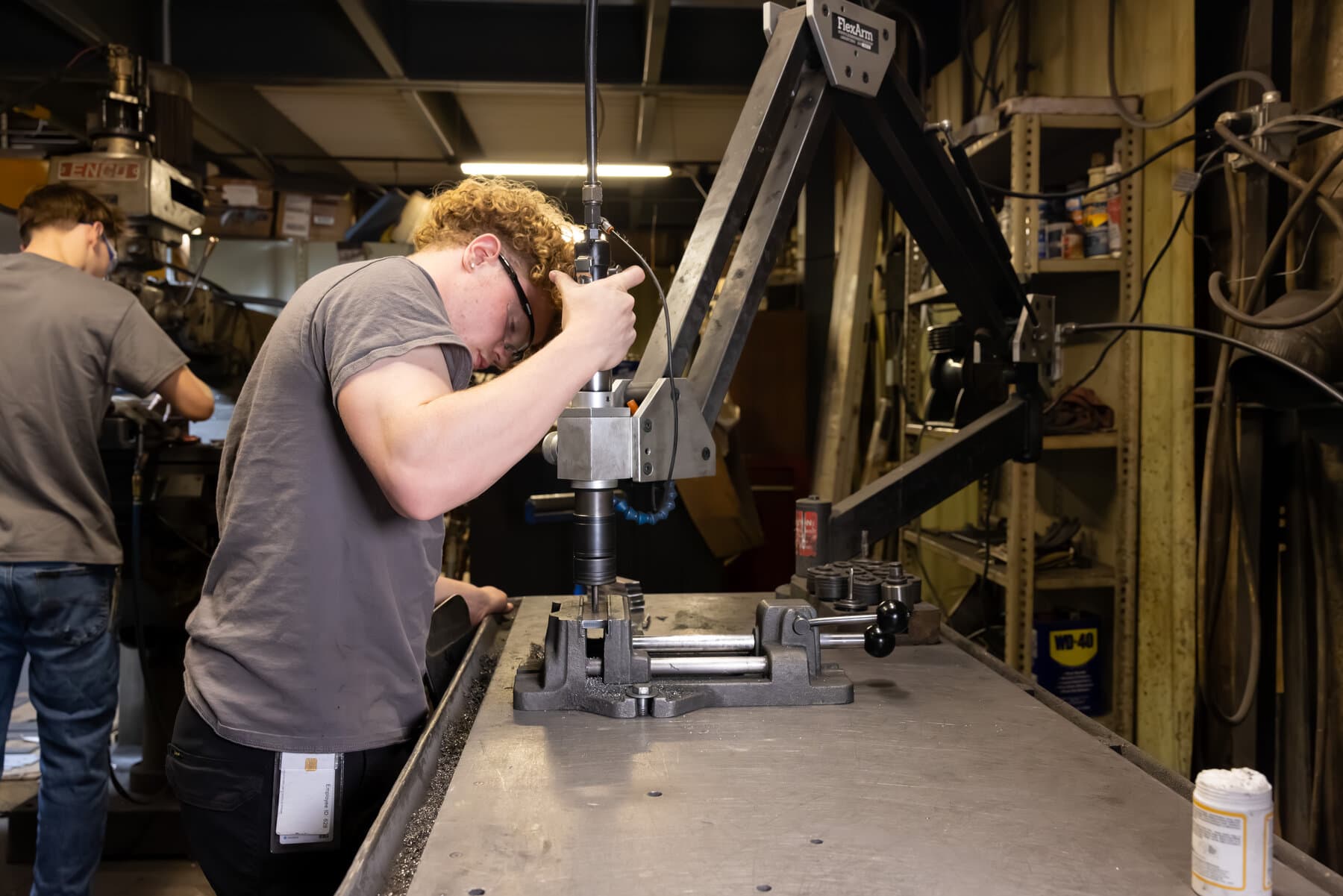

- Drilling & Tapping. (3) FlexArm RNR-20 pneumatic tapping arms and Baileigh DP-1200VS drill press.

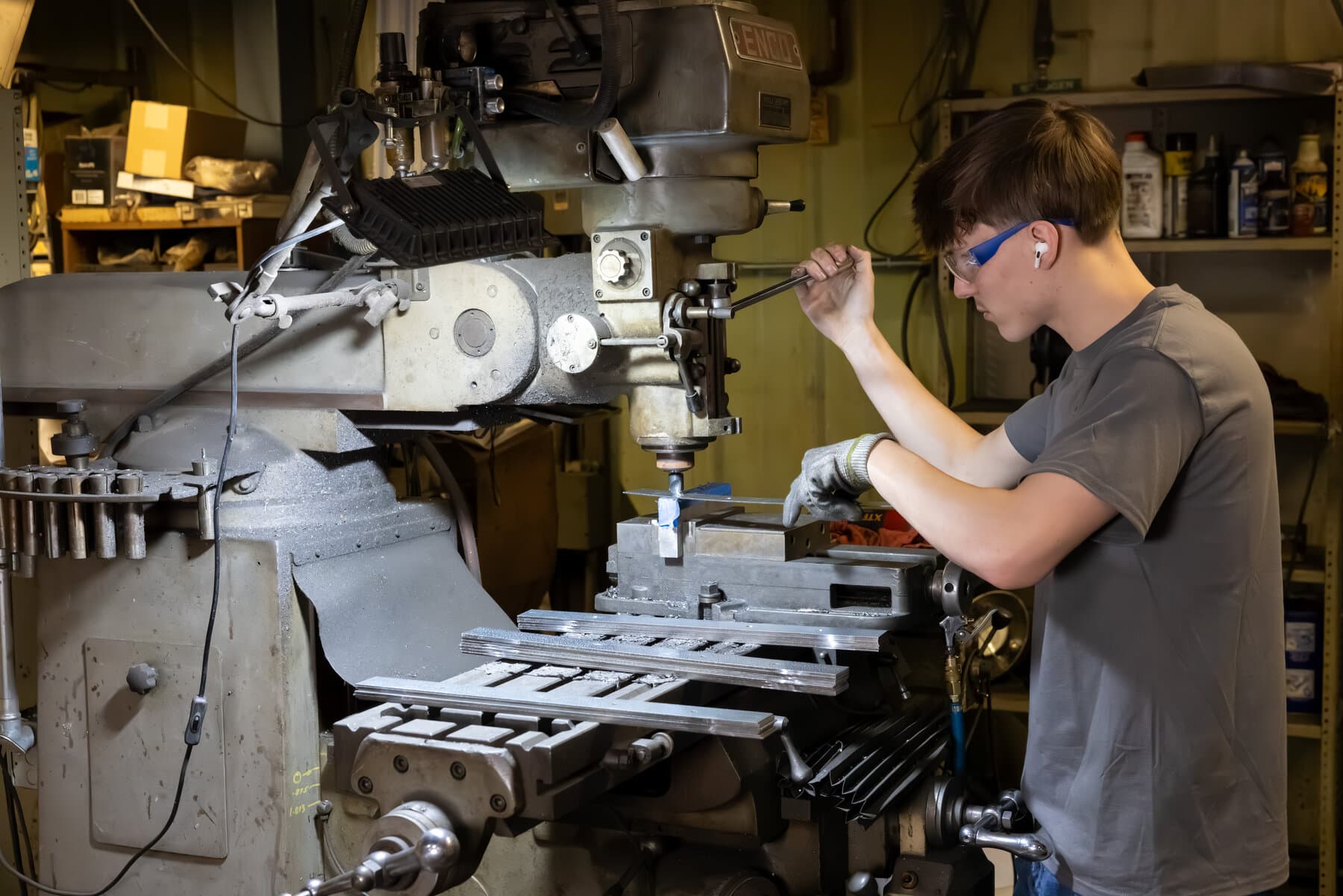

- Manual Milling. ENCO 100-529 Bridgeport vertical mill for one-offs, rework, and fixture work.
- Mild Steel
- High-Strength Steel Grades
- Stainless Steel
- Aluminum
- Brass
- Copper
- UHMW
Specific alloy, grade, temper, and condition called out per the customer's drawing and material specification.
What to send with your machining RFQ.
The more specific your RFQ, the faster and more accurate the quote. These six items cover what we need to produce a defensible lead-time and price commitment on prototype and production CNC machining work.
Drawing or native CAD with GD&T
STEP, IGES, DXF, or native CAD preferred. Geometric Dimensioning & Tolerancing callouts, datums, feature control frames, and reference dimensions, drive setup planning and inspection method. PDF-only drawings extend programming time while we re-create geometry.
Material specification
Alloy, grade, temper, and condition. For DFARS-flowed work, indicate the specialty metals clause flowdown so we can source through qualifying-country mills and carry Mill Test Reports with the part.
Tolerance requirements
Critical-to-function tolerances called out on the drawing. Default block tolerances applied to non-critical features. If a feature has a tighter tolerance than the title block, mark it explicitly so it gets routed to the right machine and inspection plan.
Surface finish
Surface roughness (Ra) per feature, where required. Cosmetic-versus-functional acceptance criteria. Post-machining finishing, deburr, bead blast, anodize, paint, plate, anything downstream of the last cutting pass.
Quantity and production volume
Prototype vs production. First-article quantity. Expected annual usage. Lot sizing drives setup amortization, fixturing investment, and machine selection between the VMC, the EC-500 horizontal, and the manual mill.
Contract flowdowns
ITAR, DFARS specialty metals, NIST 800-171 / CMMC, FAR cybersecurity clauses, First Article Inspection requirements, and any quality-system flowdowns that apply to the part.
Machining for Defense, Transportation, and M&E.
- Industry · 01
Defense
Precision machined components for U.S. and allied defense contractor programs, vehicle platforms, weapons support equipment, communications enclosures, electronics housings, and various structural assemblies built from customer drawings and Technical Data Packages.
VF-4 4-AxisEC-500ST30 / ST25View Defense→ - Industry · 02
Transportation
Machined brackets, mounts, shafts, bushings, and structural details supporting automotive, cargo trailers, fire apparatus, refuse vehicles, concrete mixers, and various airport products.
VF-4 4-AxisST30 / ST25FlexArm TapView Transportation→ - Industry · 03
Machine & Equipment Builders
Machined assemblies for paper converting, packaging equipment, drying & curing systems, commercial appliance, power equipment, and material handling programs, built to OEM drawings and technical specifications.
EC-500VF-4 4-AxisBridgeportView Machine & Equipment Builders→
Deeper reading on machined-part procurement.
What procurement engineers ask about machining.
- FAQ · 01 / 06
Does NTM machine in-house or outsource to a partner shop?
In-house. NTM operates (2) Haas VF-4 vertical machining centers with HRT310 4th axis, a Haas EC-500 horizontal machining center with pallet changer, an ENCO 100-529 Bridgeport vertical mill, (3) FlexArm RNR-20 pneumatic tapping arms, a Baileigh DP-1200VS drill press, and a Haas ST30 40HP plus Haas ST25 CNC lathe. All milling, turning, drilling, and tapping happens on the same shop floor as cutting, forming, welding, and finishing.
- FAQ · 02 / 06
What's the largest part NTM can machine?
Maximum part size depends on the machine, VMC, horizontal, or lathe, and on workholding and fixturing for the specific geometry. Share the drawing or a STEP file with overall envelope, and we'll confirm which machine is the right home for the part.
- FAQ · 03 / 06
Does NTM offer threading?
Yes. Threading is a sub-capability of the Machining service via (3) FlexArm RNR-20 pneumatic tapping arms and the Baileigh DP-1200VS drill press for drilled-and-tapped features, plus single-point and threaded features cut on the Haas ST30 and ST25 lathes. CNC-milled threaded features run on the VF-4 mills and the EC-500 horizontal.
- FAQ · 04 / 06
What lathe capacity does NTM have?
Two Haas CNC lathes: the Haas ST30 (40HP main spindle) and the Haas ST25. Between them they cover most shaft, bushing, fitting, and rotational-part work for prototype through production quantities. Specific bar capacity and chuck size confirmed per part during quote review.
- FAQ · 05 / 06
Does NTM machine stainless steel and aluminum?
Yes. Stainless and aluminum are standard materials on the VF-4 mills, the EC-500 horizontal, and the ST30 / ST25 lathes. Mild steel, high-strength steel grades, and brass are also routine. Specific alloy, temper, and condition called out per the customer's drawing and material specification, including any DFARS specialty metals flowdown for defense work.
- FAQ · 06 / 06
What tolerances does NTM hold?
Tolerances are quoted feature-by-feature from the drawing's GD&T callouts. Block tolerances apply to non-critical dimensions; tighter tolerances on critical features are routed to the right machine and the right inspection plan during quote review. Send the drawing. We'll confirm what's quotable and what needs a tolerance conversation.
Machining QC at NTM.
Every machined part moves through documented quality control before it ships. The same compliance footprint that supports the homepage Certified Quality section applies to every machined component.
See full quality system →CMM Dimensional Verification
Coordinate Measuring Machine variable-data measurement on critical features per the drawing.
GD&T Verification
Datum structure, feature control frames, and reference dimensions inspected against the drawing's GD&T callouts.
Surface Finish Measurement
Surface roughness (Ra) measured where the drawing specifies a finish requirement.
First Article Inspection
PPAP / First Article Inspection package compiled when required by contract, drawing-driven, not assumed.
Material Traceability
Mill Test Reports and heat lot identification carried from receiving through finished part delivery.
Certificate of Conformance
C of C available per shipment with DFARS / ITAR / NIST flowdown references where applicable.
